Name: |
P56F |
| Specs: | Static Load: 2800 KG
6HP VVVF, 450 KG, 0.8 m/sec
with Side Pedestal, Rope Guard, Oil Bottle |
|
Name: |
P58F II Series |
| Specs: | Static Load = 3200 KG
1 - 6HP AC-2, 450KG, Speed 0.71 - 0.79 m/sec
2 - 8HP VVVF, 570KG, Speed 0.85 - 0.93 m/sec
3 - 8HP AC-2, 630KG, Speed 0.71 - 0.79 m/sec
4 - 9HP 630KG, Speed 0.85 - 0.93 m/sec
with Side Pedestal, Rope Guard, Oil Bottle |
NEW  |
Name: |
P60F II Series |
| Specs: | Static Load = 3500 KG
1 - 9HP AC-2, 630KG, Speed 0.85 - 0.93 m/sec
2 - 10HP VVVF, 670KG, Speed 0.85 - 0.93 m/sec
3 - 10HP AC-2, 630KG, Speed 1.00 - 1.10 m/sec
4 - 10HP VVVF, 450 KG, 1.9 m/sec (NEW!)
with Side Pedestal, Rope Guard, Oil Bottle |
 |
Name: |
P68F II Series |
| Specs: | Static Load = 6000 KG
1 - 14HP VVVF, 960KG, Speed 0.97 - 1.07 m/sec
2 - 14HP AC-2, 960KG, Speed 0.97 - 1.07 m/sec
3 - 16HP AC-2, 1080KG, Speed 0.97 - 1.07 m/sec
with Rope Guard, Oil Bottle |
 |
Name: |

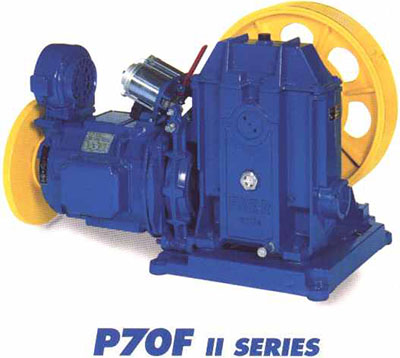

P70F II Series |
| Specs: | Static Load = 8000 KG
1 - 18HP AC-2, 1500KG, Speed 0.77 - 0.85 m/sec
2 - 25HP AC-2, 1600KG, Speed 0.97 - 1.07 m/sec
with Rope Guard, Oil Bottle |
|
